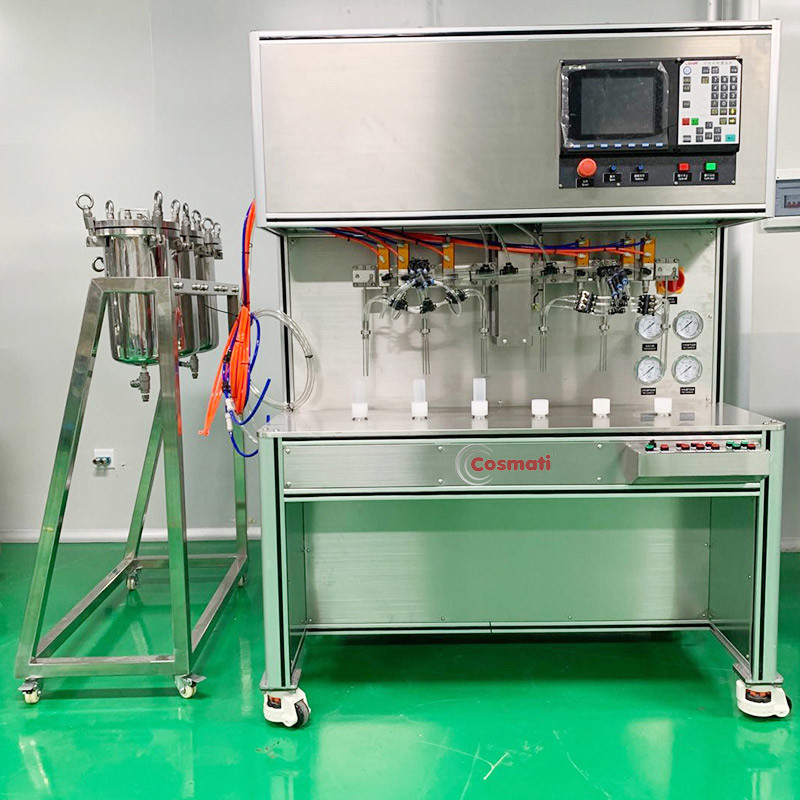

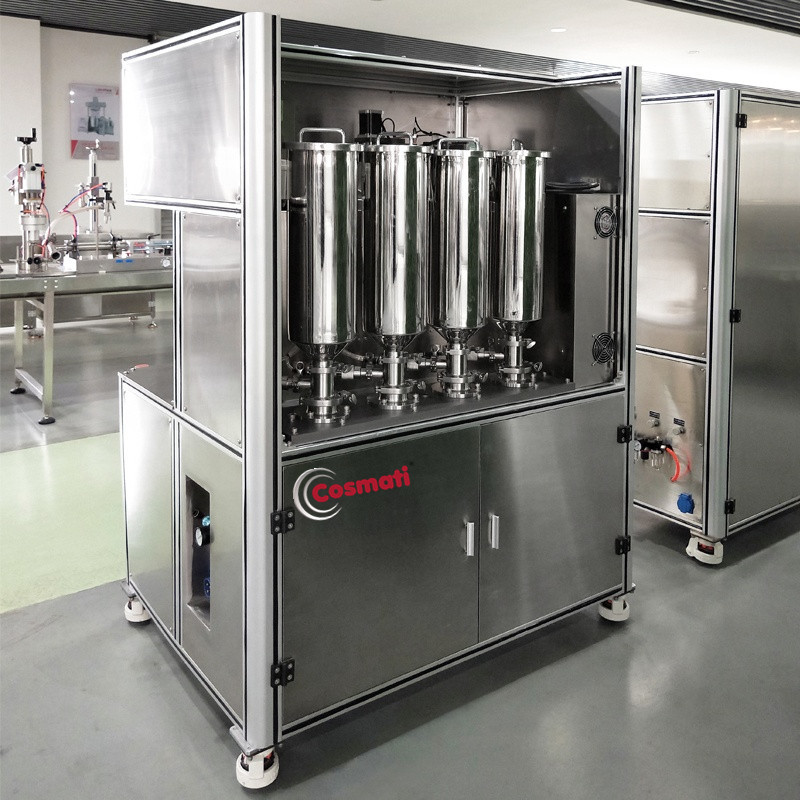

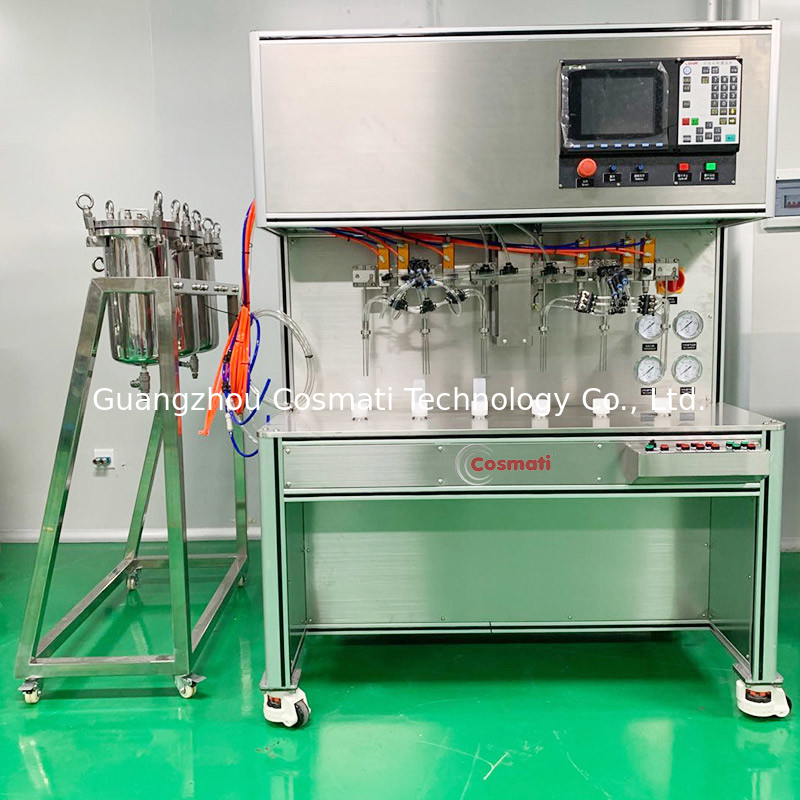

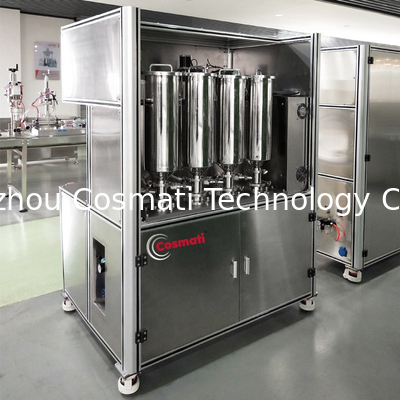

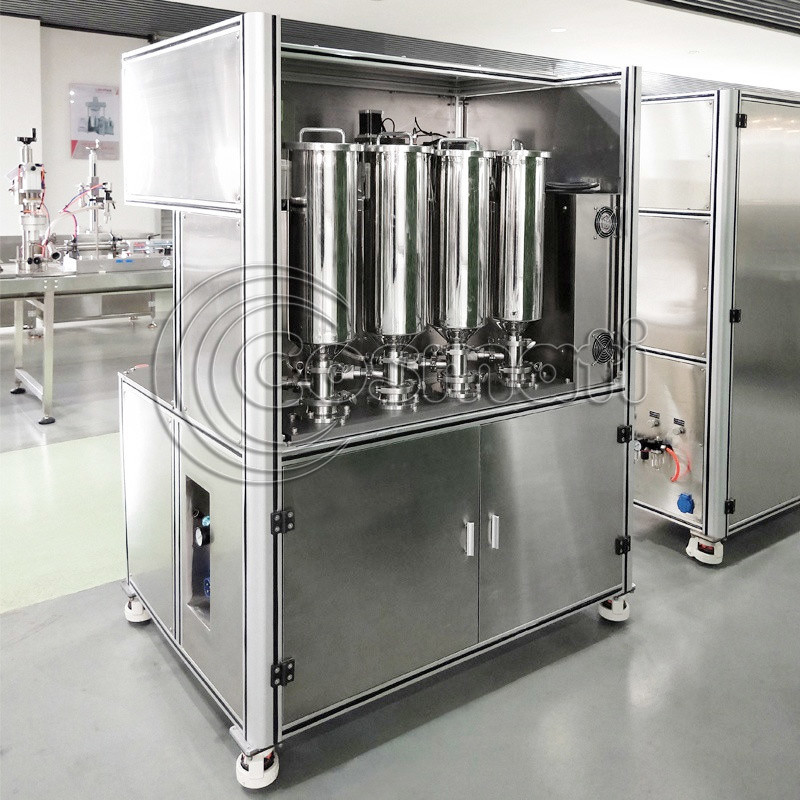

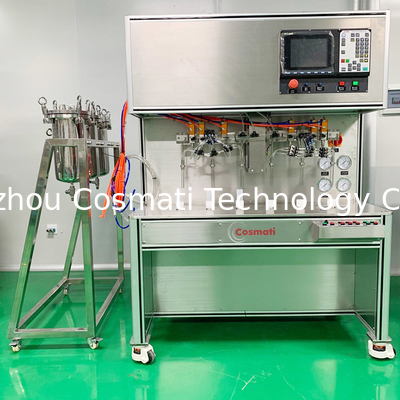

4 heads/6 heads Automatic Gouache Latte multi-color isolation cream pearl pattern filling machine

Minimum Order Quantity :	1 Set	Prix :	USD 6000-9000
Packaging Details :	Polywood case	Delivery Time :	25-30 working days
Payment Terms :	T/T, L/C	Supply Ability :	30 Sets/Month

Place of Origin:	Guangzhou	Nom de marque:	COSMATI
Certification:	CE	Model Number:	CM-PPF-500

Détail Infomation
Products Name::	4 heads/6 heads Automatic Gouache Latte multi-color isolation cream pearl pattern filling machine	Dimension(LWH)::	1800x1015x1780mm
Weight::	230 KG	Machinery Capacity::	200BPH
Filling Accuracy::	±1%	Filling speed::	50-120 bottle/hour

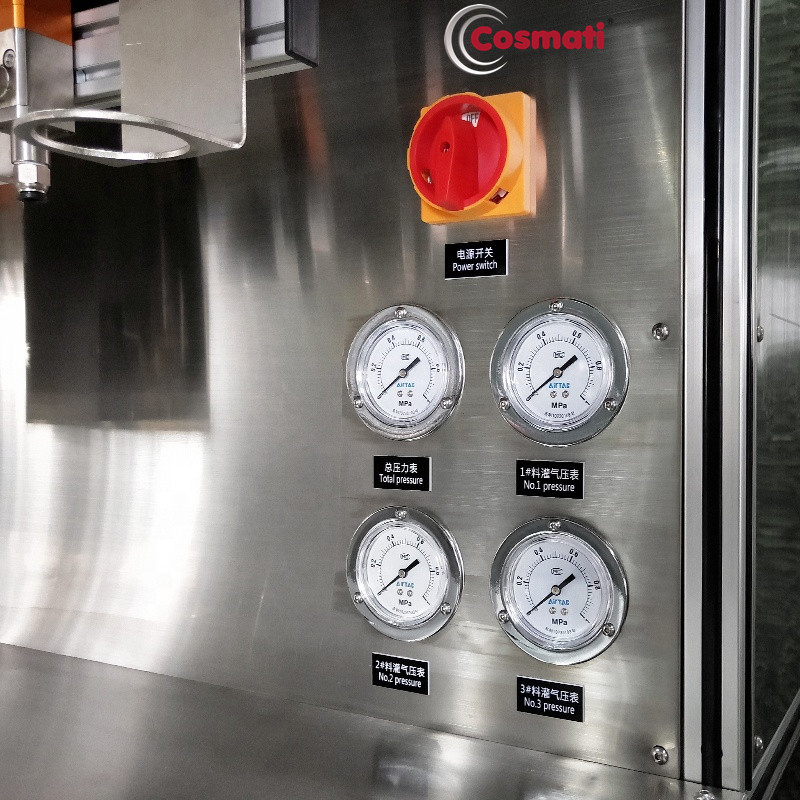

Air pressure::	0.4-0.6MPa	Control::	PLC+ Touch Screen
Applicable material::	cosmetics lotion gel cream	Filling range::	5-100ml
Material::	Stainless steel	Keywords::	Pearl Pattern Skin Care Lotion Gel Cream Filling Equipment

Description de produit

Automatic Gouache Latte multi-color isolation cream filling machine

4 heads/6 heads Automatic Gouache Latte multi-color isolation cream pearl pattern filling machine 0

_20210708111507 _20210708111356 _20210708111704 _20210708111350

Instruction:
The computer pattern filling machine is specially for the cosmetic manufacturer to fill all kinds of ball shape stereoscopic pattern into transparent gel product automatically. This system is characteristic with highly automatic, series produced, species diversity, easy to operate, system is running smoothly, safe, reliable, easy maintenance.

Features:

1. Except the pattern filling function the machine also have the ointment filling function and the desperation function (optional parts).

2. The setting is with the Monochrome multi-gray 10 " LCD display, with both English and Chinese, the working parameters, the running track display functions and procedures for inspection show in the screen.

3. Adopts the NC language, easy to operate, with hundreds of pattern system storing ability, and also with 3.5' Floppy disk drive, the programming can be worked under the circulation of host also working, thought the PLC it will simulation demonstration the working parameter and shape, this will made the buyer to facilitate, develop, examine and modify the program more easier.

4. Can be choose for singe head filling or more heads filling, the time interval can be set according the customer requirement and can counting the filling quantity.

5. Single or multi-axis work optional, easy for the production adjust and the test of the new pattern.

6. Simple setting of the magnetic valve.
7. The driving power of filling is compressed air easy to adjust the pressure.
